Blackmagic Design

ATEM 2 M/E Advanced Panel 30

A$12,459
A$10,564
incl. GST
Close

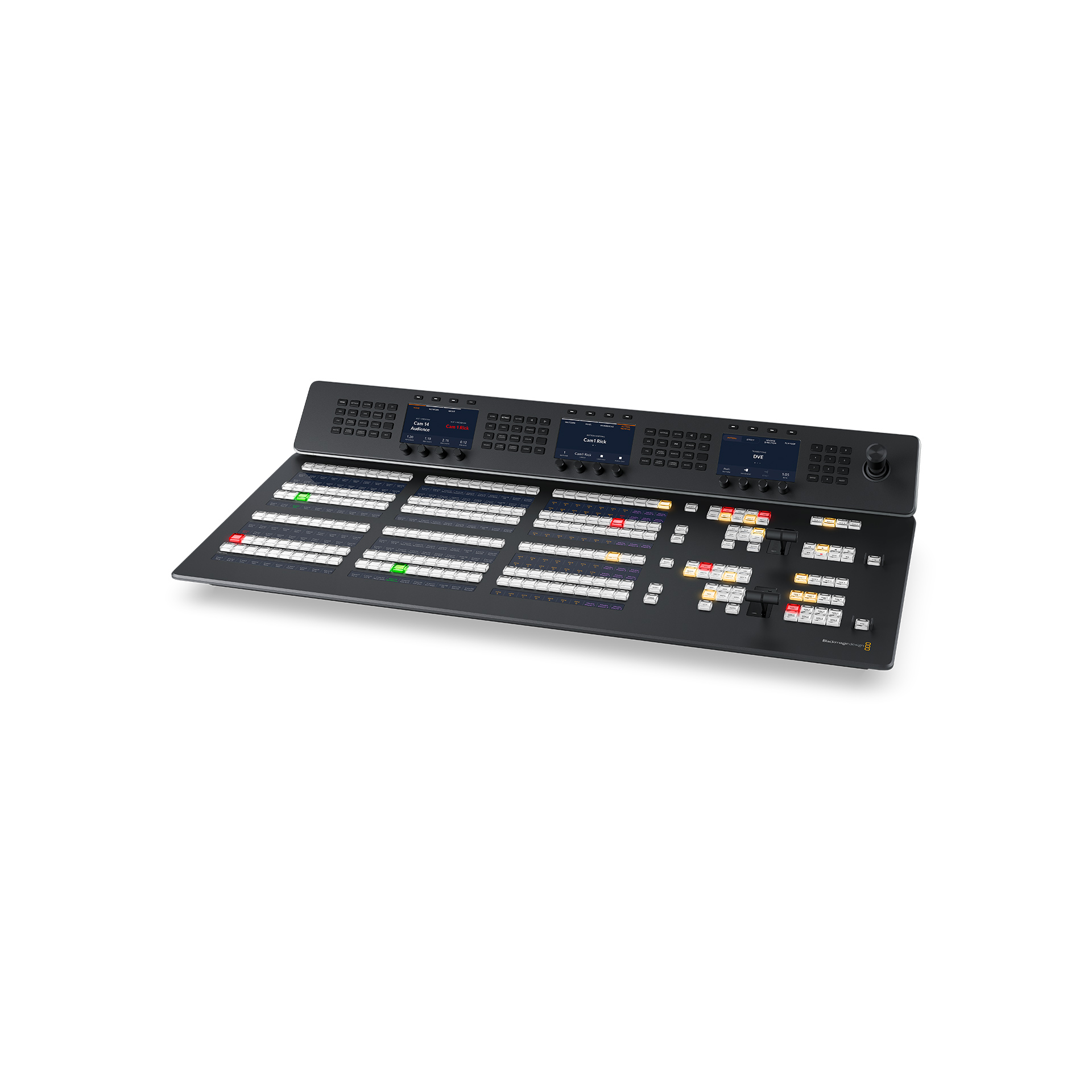

ATEM 2 M/E Advanced Panel 30 Top
ATEM 2 M/E Advanced Panel 30 Front
No items found.

The 2 M/E model features 2 M/E rows with 30 input buttons and 2 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!

  • Panel for BMD ATEM Switchers
  • High-Quality Buttons / Knobs / Controls
  • 2 x M/E Rows with 20 x Buttons per Row
  • 2 System Control LCDs, Control 4 M/Es
  • 4 x Gigabit Ethernet Loop Output
  • Custom Labeling, Redundant Power Supply
  • 8 x On-Air Indicators, 20 x Cross Points
  • 3-Axis Joystick, Keypad, 2 x Faders
  • USB Type-C Input for Firmware Updates

Not sure if this is the right piece of equipment for you?

Talk to one of our expert staff for free recommendations:
Call 02 8850 2223
ATEM 2 M/E Advanced Panel 30

ATEM 2 M/E Advanced Panel 30

Blackmagic Design
A$10,564

The ATEM 2 M/E Advanced Panel is a highly sophisticated advancement of previous panel models as a companion to separately available professional ATEM switchers from Blackmagic Design. Using features such as high-quality buttons, knobs, fader bars, and a 3-axis joystick, you'll be able to customize the extensive panel to your precise needs.
Complex live productions require a versatile control panel, and the ATEM 2 M/E Advanced Panel allows you to customize, monitor, and switch your live broadcast events with features such as camera switching, executing transitions, fades, DVE effects, and it also sports 8 on-air indicators. The panel features two rows of M/E with 20 input buttons per row, two system control LCDs, independent LCDs for custom labeling of every row and button, 20 direct cross points, 40 shifted cross points, two preview transitions, and various DSK transition selectors such as Auto, Cut, and Tie/Preview.
The ATEM 2 M/E Advanced Panel connects to the switcher via 10/100/1000 BaseT Ethernet, and there are four Ethernet loop outputs for connecting to another panel or to a media-management computer. The panel receives firmware updates via its USB Type-C input.

Key Features

Tri-color LED crosspoint buttons, 20 direct cross points and 40 shifted cross points

Two M/E rows with 20 input buttons in each row

Two system control LCDs for each row and LCDs for customizing labels for each button

Two fader bars, 3-axis joystick, numeric keypad

Eight on-air indicators

Two transition previews with transition rate display

Compatible Operating Systems

macOS 10.14 Mojave, 10.15 Catalina or later
Windows 10, 64-bit

Connections

Ethernet
4 x 10/100/1000 BASE-T with loop outputfor additional control panels or computers.
Software Updates
1 x USB-C for firmware updates.

Product Specifics

Number of Mix Effects Rows
2
Direct Cross Points
30
Shifted Cross Points
60
Crosspoint Button Type
Tri-Color LED
Crosspoint Label
6 rows 24 character LCD
On-Air indicator
12
Power Status Indicators
None
DSK Transition Selectors
4 x Auto, Cut, Tie/Preview
Preview Transition
2
Transition Rate Displays
Via main menu
LCD Menu Displays
3
Menu Control
3 x 20 buttons
Dedicated Macro Buttons
2 x 30
Transport Control Buttons
8
Destination Bus
2
Source Select Bus
2
Fader Bar
2
3 Axis Joystick
1
Numeric Keypad
1

Software

Software Applications
ATEM Software Control Panel.

Operating Systems

Mac 11.1 Big Sur,
Mac 12.0 Monterey or later.
Windows 10 and 11.

Power Requirements

Input Voltage
2 x Internal 100 - 240V AC.
Redundant Power
Yes
Power Usage
120W

Environmental Specifications

Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
Up to 95%
